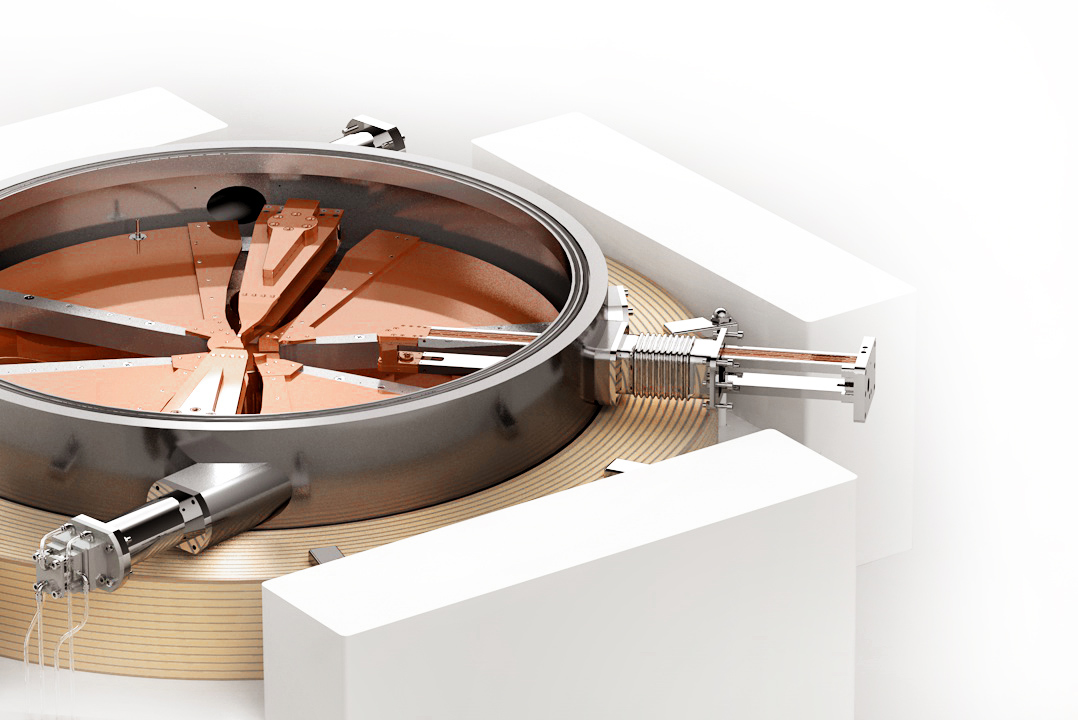

Consists of a coil, a ferromagnet, and a power supply system to provide an isochronous magnetic field for particle rotation

Consists of three subsystems: resonator, power generator, and feed-through cable, which provides the electric field for particle acceleration

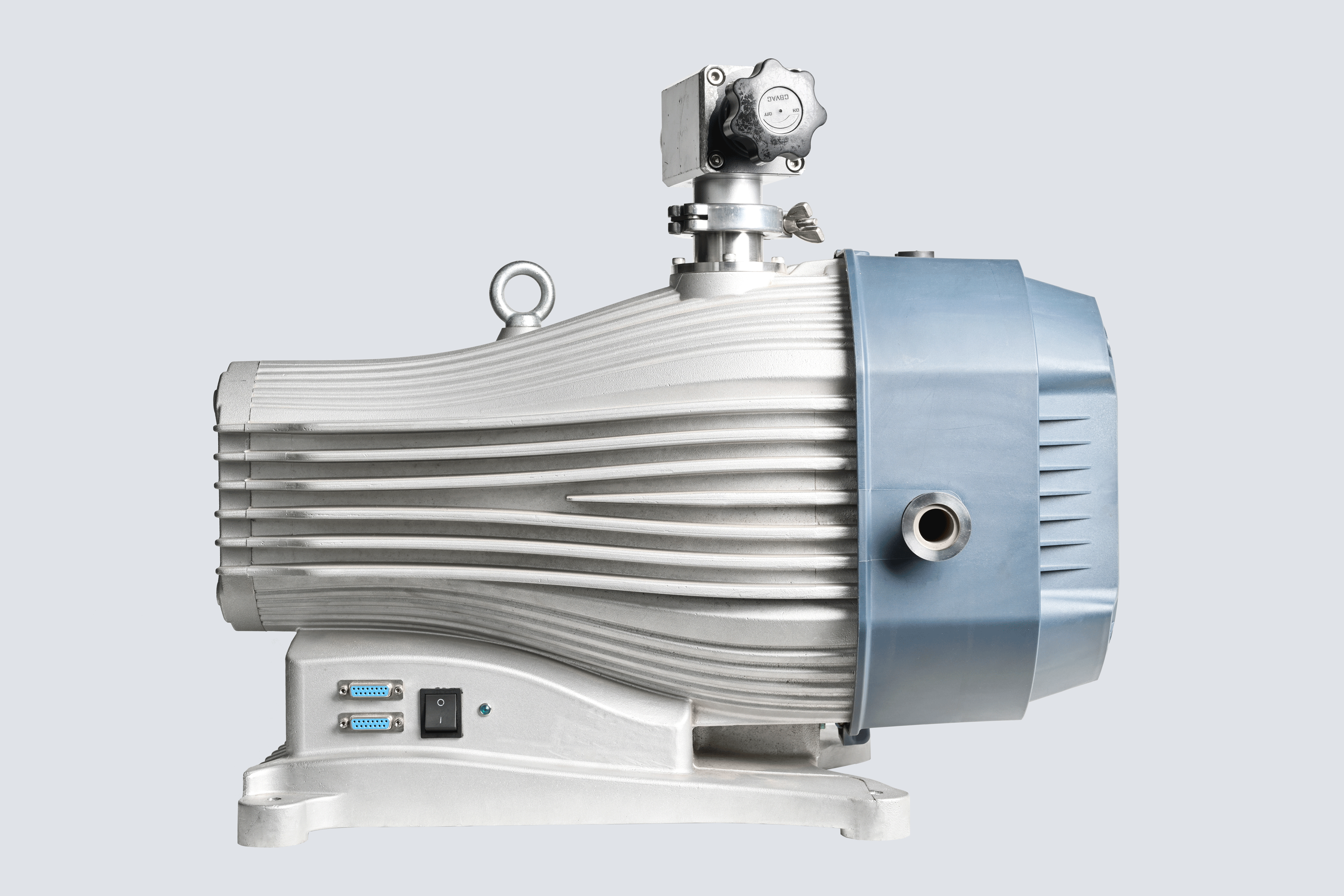

Consists of vacuum chamber, vacuum pump, high vacuum valve and high and low vacuum gauges etc. to produce a vacuum environment for particle movement

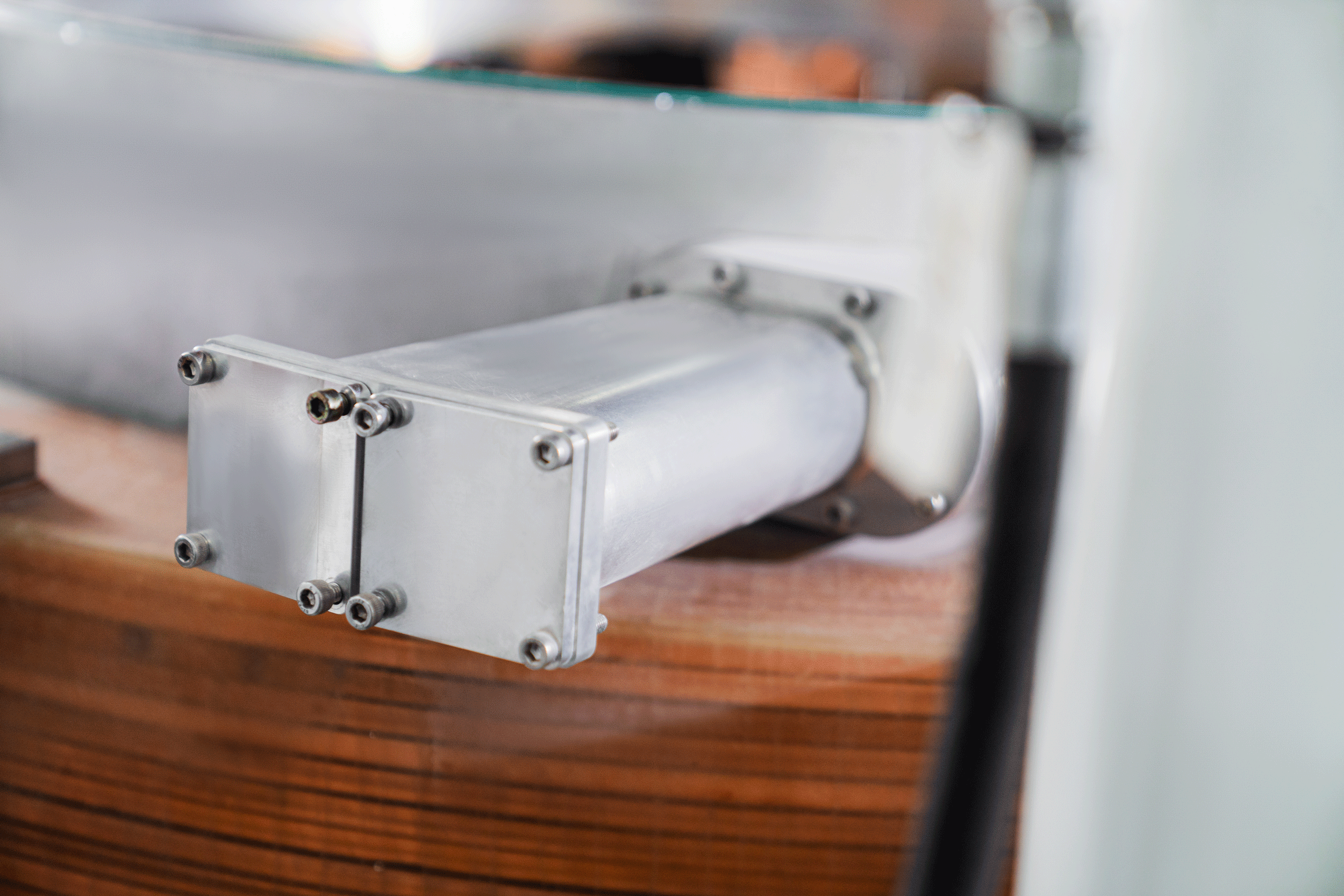

Including ion source, ion source power supply and gas management system, which is one of the key systems of the cyclotron, generating charged particles and providing ion beams for the gas pedal.

Takes away the waste heat generated by the whole system

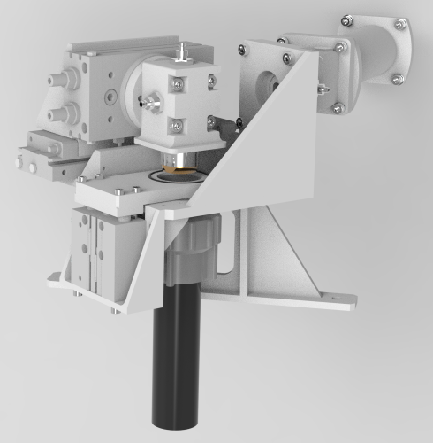

Including target carrier, target, and control system, which is the device to accomplish specific nuclear reaction

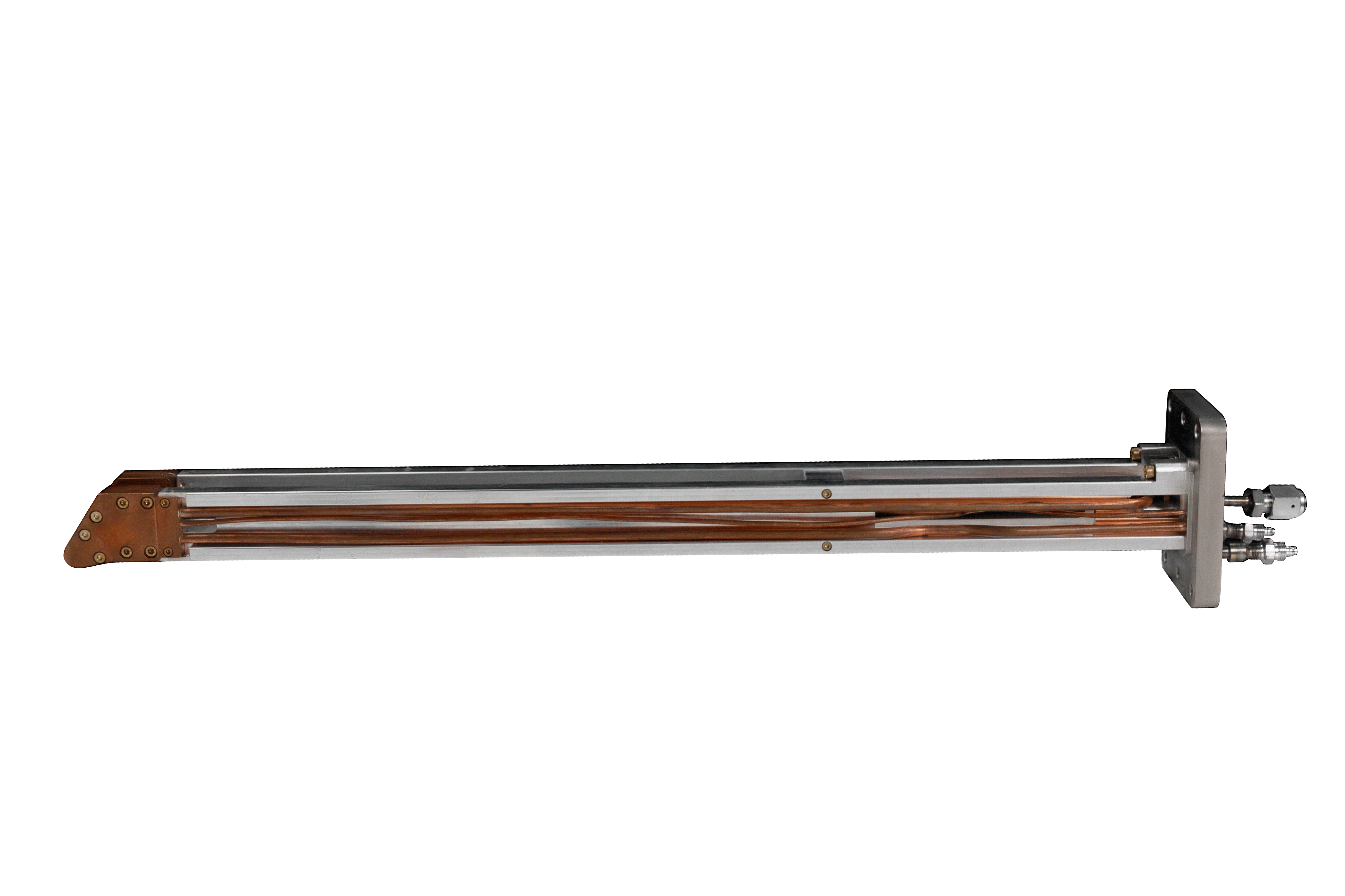

Changes the orbit of accelerated particles leading them to the target

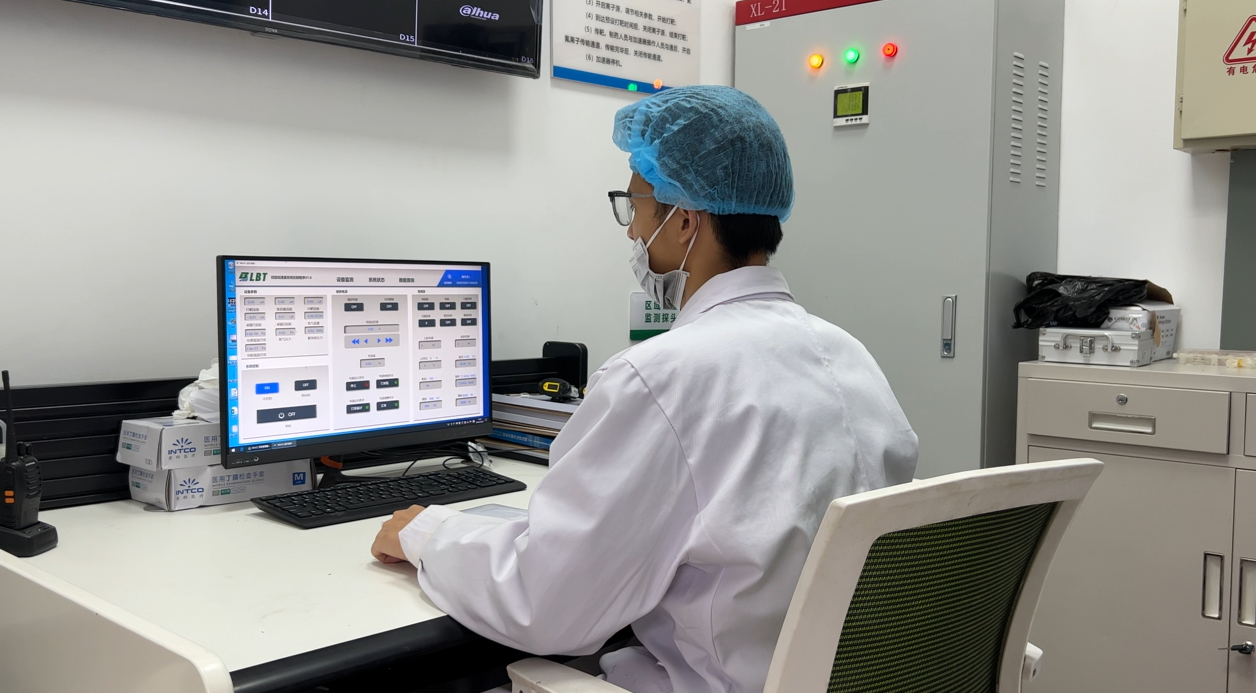

Comprises cyclotron control unit, vacuum control unit and interface control unit

Can monitor and analyze the beam current at several positions on the beam track and issue commands to adjust and optimize the beam current
